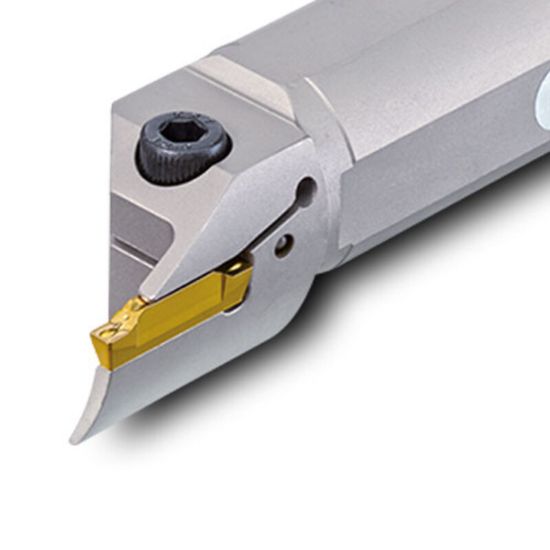

Picture of INGERSOLL TTFIL25.4-3T12-54-85 Face Grooving Boring Bar Boring Bar 1.000 Steel

INGERSOLL TTFIL25.4-3T12-54-85 Face Grooving Boring Bar Boring Bar 1.000 Steel

ANSI: TTFIL25.4-3T12-54-85

ISO: TTFIL25.4-3T12-54-85

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6114687
Delivery date: 3-5 days
$320.67

Features And Benefits

Internal face grooving and face turning holders

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Application Face Grooving
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Tool Material Steel
Insert Size Ic 3
Machine Side Connection Type Boring Bar
Face Groove Max Dia 3.3460
Depth Of Cut Max 0.4720
Overall Len 8.0000 203.20MM
Face Groove Min Dia 2.1260
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Over Hang 1.2200
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Left
Inter/Extern Internal
Insert Style TD
