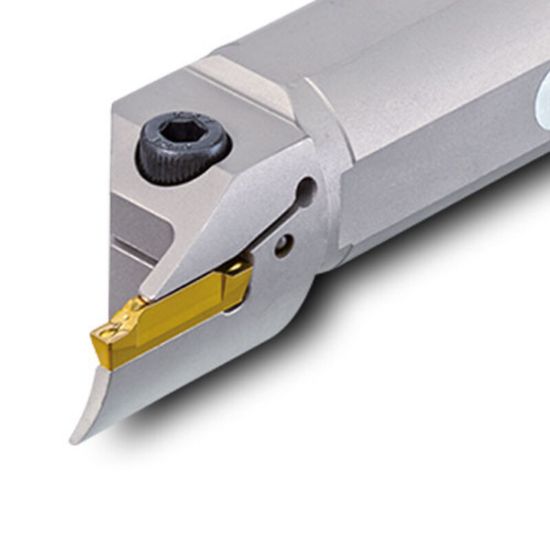

Picture of INGERSOLL TTFIL25.4-3T12-33-48 Face Grooving Boring Bar Boring Bar 1.000 Steel

INGERSOLL TTFIL25.4-3T12-33-48 Face Grooving Boring Bar Boring Bar 1.000 Steel

ANSI: TTFIL25.4-3T12-33-48

ISO: TTFIL25.4-3T12-33-48

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6114691
Delivery date: 3-5 days
$320.67

Features And Benefits

Internal face grooving and face turning holders

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Grooving
Shipping State Illinois
Insert Application General Purpose
Made In USA No
Package Size 1
Dimensional Specifications
Tool Material Steel
Insert Size Ic 3
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Over Hang 1.2200
Face Groove Max Dia 1.8890
Overall Len 8.0000 203.20MM
Depth Of Cut Max 0.4720
Face Groove Min Dia 1.3000
Cutting & Machining Properties
Insert Style TD
Hand R/L Left
Inter/Extern Internal
Coolant Thru Yes
