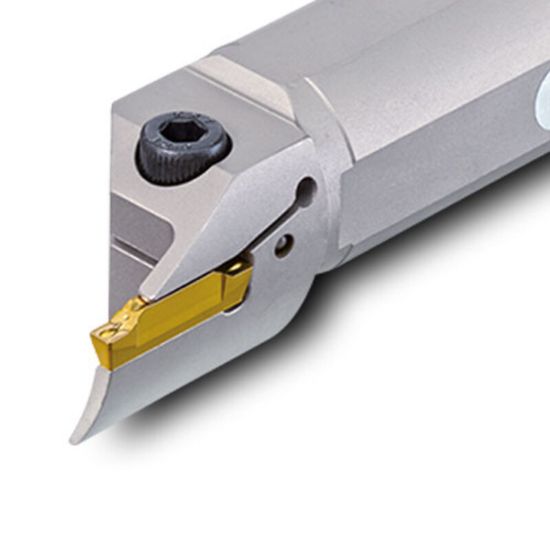

Picture of INGERSOLL TTFIL25.4-3T12-20-33 Face Grooving Boring Bar Boring Bar 1.000 Steel

INGERSOLL TTFIL25.4-3T12-20-33 Face Grooving Boring Bar Boring Bar 1.000 Steel

ANSI: TTFIL25.4-3T12-20-33

ISO: TTFIL25.4-3T12-20-33

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6114695
Delivery date: 3-5 days
$320.67

Features And Benefits

Internal face grooving and face turning holders

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Package Size 1
Insert/Tool Tool
Application Face Grooving
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 3
Machine Side Connection Type Boring Bar
Face Groove Min Dia 0.7870
Face Groove Max Dia 1.3000
Overall Len 8.0000 203.20MM
Depth Of Cut Max 0.4720
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Over Hang 1.2200
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Inter/Extern Internal
Insert Style TD
Hand R/L Left
