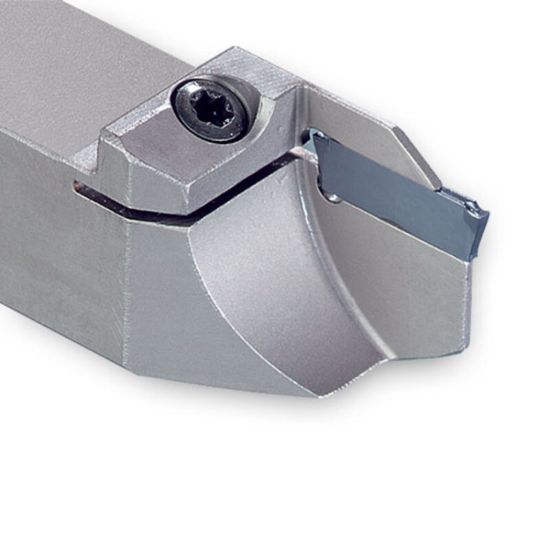

Picture of INGERSOLL TTER9.5-20-2SH Cut Off,Grooving Stick Tool Square 0.375 Steel

INGERSOLL TTER9.5-20-2SH Cut Off,Grooving Stick Tool Square 0.375 Steel

ANSI: TTER9.5-20-2SH

ISO: TTER9.5-20-2SH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6163651
Delivery date: 3-5 days
$126.53

Features And Benefits

External turning and grooving holders for Swiss Automatics

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ext.Groove Turning, Ext.Grooving, Parting
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Overall Len 5.0000 127.00MM
Insert Size Ic 2
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3750 9.53MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Tool Over Hang 0.7500
Cutting & Machining Properties
Inter/Extern External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style TD
