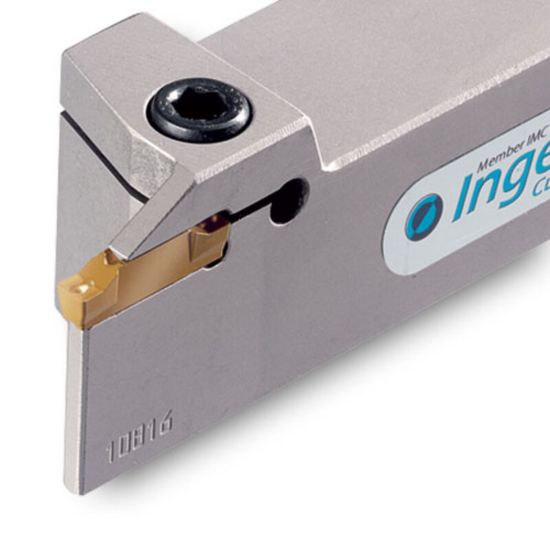

Picture of INGERSOLL TTER31.8-5 Cut Off,Grooving Stick Tool Square 1.250 Steel

INGERSOLL TTER31.8-5 Cut Off,Grooving Stick Tool Square 1.250 Steel

ANSI: TTER31.8-5

ISO: TTER31.8-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2830161
Delivery date: 3-5 days
$180.27

Features And Benefits

Middle Tmax holders for external turning and grooving

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Application Ext.Groove Turning, Ext.Grooving, Parting
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 7.0000 177.80MM
Insert Size Ic 5
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Style TD
Insert Shape/Cutter Pocket Shape Dog Bone
Inter/Extern External
Coolant Thru No
