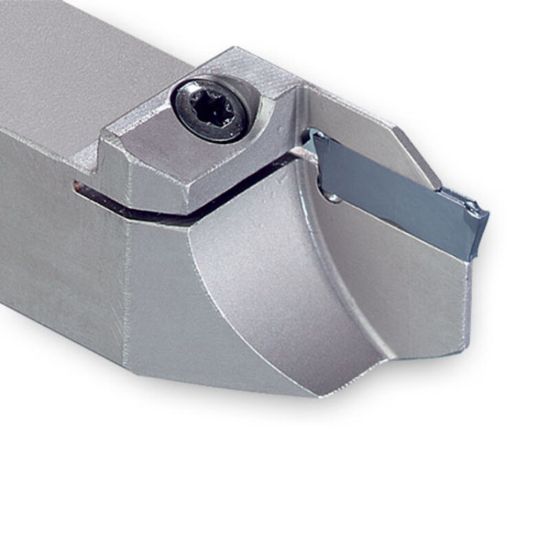

Picture of INGERSOLL TTER12.7-24-2SH Cut Off,Grooving Stick Tool Square 0.500 Steel

INGERSOLL TTER12.7-24-2SH Cut Off,Grooving Stick Tool Square 0.500 Steel

ANSI: TTER12.7-24-2SH

ISO: TTER12.7-24-2SH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6163655
Delivery date: 3-5 days
$126.53

Features And Benefits

External turning and grooving holders for Swiss Automatics

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Application Ext.Groove Turning, Ext.Grooving, Parting
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Tool Over Hang 0.7500
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Overall Len 5.0000 127.00MM
Insert Size Ic 2
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Style TD
Insert Shape/Cutter Pocket Shape Dog Bone
Inter/Extern External
Coolant Thru No
