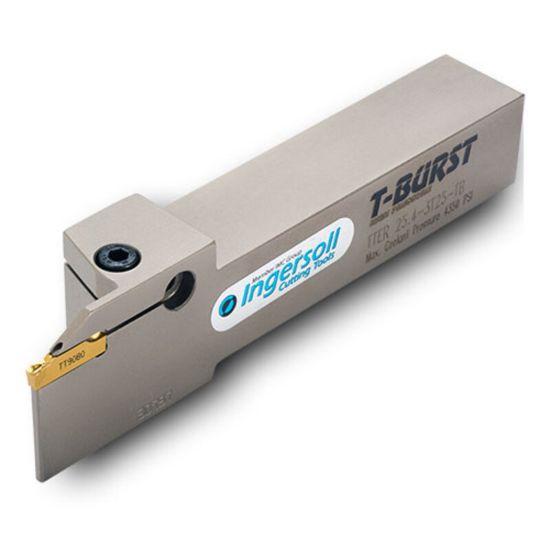

Picture of INGERSOLL TTEL25.4-3-TB Cut Off,Grooving Stick Tool Square 1.000 Steel

INGERSOLL TTEL25.4-3-TB Cut Off,Grooving Stick Tool Square 1.000 Steel

ANSI: TTEL25.4-3-TB

ISO: TTEL25.4-3-TB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6138837
Delivery date: 3-5 days
$247.87

Features And Benefits

Middle Tmax holders for external turning and grooving High pressure coolant

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Package Size 1
Application Ext.Grooving, Parting, Ext.Groove Turning
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 3
Tool Over Hang 1.6900
Overall Len 6.0000 152.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Inter/Extern External
Coolant Thru Yes
Insert Style TD
