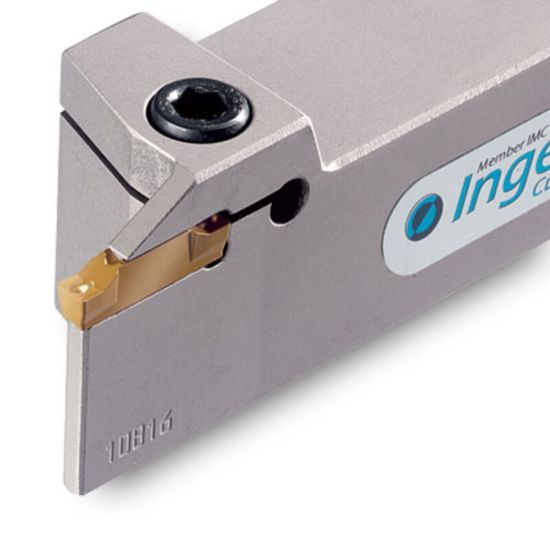

Picture of INGERSOLL TTEL25.4-2T17 Cut Off,Grooving Stick Tool Square 1.000 Steel

INGERSOLL TTEL25.4-2T17 Cut Off,Grooving Stick Tool Square 1.000 Steel

ANSI: TTEL25.4-2T17

ISO: TTEL25.4-2T17

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2801249
Delivery date: 3-5 days
$167.27

Features And Benefits

Long Tmax holders for external turning and grooving

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ext.Grooving, Parting, Ext.Groove Turning
Insert Application General Purpose
Made In USA No
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Overall Len 6.0000 152.40MM
Tool Over Hang 1.4600
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 2
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Inter/Extern External
Coolant Thru No
Insert Style TD
Insert Shape/Cutter Pocket Shape Dog Bone
