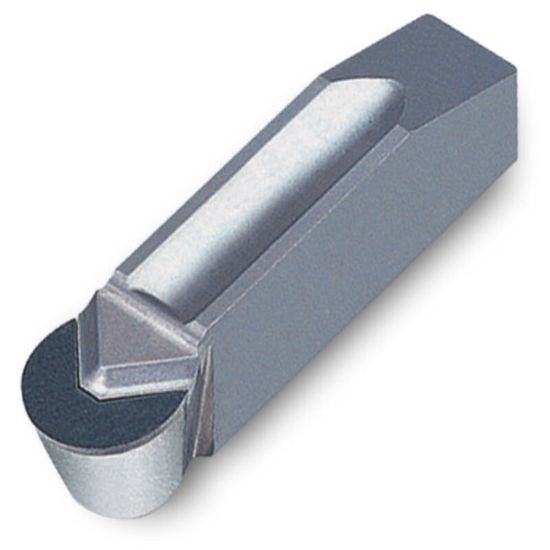

Picture of INGERSOLL TSA6.00-3.00 KP300 Cut Off & Grooving Grooving Insert 0.118 Corner Radius

INGERSOLL TSA6.00-3.00 KP300 Cut Off & Grooving Grooving Insert 0.118 Corner Radius

ANSI: TSA6.00-3.00 KP300

ISO: TSA6.00-3.00 KP300

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5400389
Delivery date: 3-5 days
$205.33

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Grade and Coating Description

PCD grade with medium size of PCD for general turning and milling of non-ferrous materials with excellent combination of wear resistance and good toughness

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Application Grooving & Parting Insert
Insert Application Finishing
Insert Type Positive
Insert/Tool Insert
Grade KP300
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 6
Corner Radius 0.1180 3.00MM
Cut Rating Aluminum, Graphite
Cutting & Machining Properties
Cutting Edge Mat PCD
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style TS
