  • INGERSOLL TRGSM40I060-22-02 Milling Cutter 75.0° 6.000 Shell Arbor 1.5748 24 Flute Coolant 0.43 Max DOC 2.283 OAL

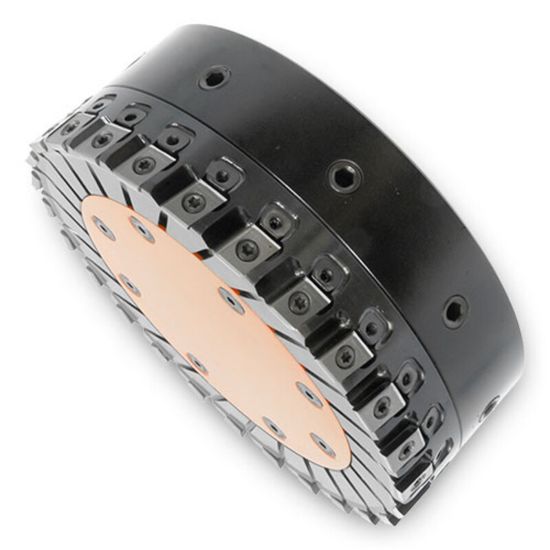

Picture of INGERSOLL TRGSM40I060-22-02 Milling Cutter 75.0° 6.000 Shell Arbor 1.5748 24 Flute Coolant 0.43 Max DOC 2.283 OAL

INGERSOLL TRGSM40I060-22-02 Milling Cutter 75.0° 6.000 Shell Arbor 1.5748 24 Flute Coolant 0.43 Max DOC 2.283 OAL

ANSI: TRGSM40I060-22-02

ISO: TRGSM40I060-22-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2718310
Delivery date: 3-5 days
$3,238.67
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Insert/Tool Tool
Insert Application Finishing
Shipping State Illinois
Application Face Milling
Package Size 1
Dimensional Specifications
Cutter Dia 6.0000 152.40MM
Cut Dia Min 5.9500 151.13MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Aluminum/Steel
Depth Of Cut Max 0.4300
Machine Side Connection Size 1.5748 40.00MM
Overall Len 2.2830 57.99MM
Cut Dia Max 6.0000 152.40MM
Flutes/Inserts 24
Cutting & Machining Properties
Insert Style PC
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
