  • INGERSOLL TRGSM22I025-10-00 Milling Cutter 75.0° 2.500 Shell Arbor 0.8661 10 Flute Coolant 0.43 Max DOC 2.165 OAL

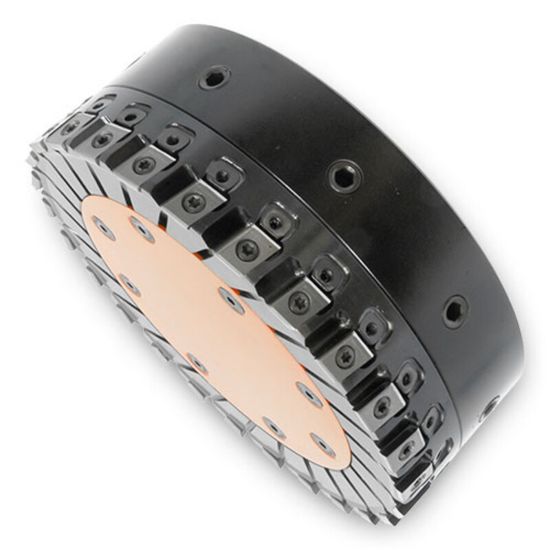

Picture of INGERSOLL TRGSM22I025-10-00 Milling Cutter 75.0° 2.500 Shell Arbor 0.8661 10 Flute Coolant 0.43 Max DOC 2.165 OAL

INGERSOLL TRGSM22I025-10-00 Milling Cutter 75.0° 2.500 Shell Arbor 0.8661 10 Flute Coolant 0.43 Max DOC 2.165 OAL

ANSI: TRGSM22I025-10-00

ISO: TRGSM22I025-10-00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2718083
Delivery date: 3-5 days
$1,185.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Insert Application Finishing
Application Face Milling
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 0.8661 22.00MM
Cut Dia Min 2.4500 62.23MM
Tool Material Aluminum/Steel
Cutter Dia 2.5000 63.50MM - 2-1/2
Overall Len 2.1650 54.99MM
Flutes/Inserts 10
Depth Of Cut Max 0.4300
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru Yes
Insert Style PC
Insert Shape/Cutter Pocket Shape Other
