  • INGERSOLL TRGSM22I020-08-00 Milling Cutter 75.0° 2.000 Shell Arbor 0.8661 8 Flute Coolant 0.43 Max DOC 2.165 OAL

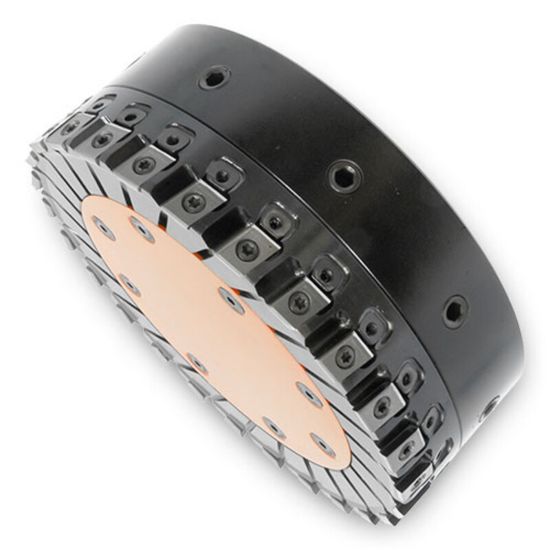

Picture of INGERSOLL TRGSM22I020-08-00 Milling Cutter 75.0° 2.000 Shell Arbor 0.8661 8 Flute Coolant 0.43 Max DOC 2.165 OAL

INGERSOLL TRGSM22I020-08-00 Milling Cutter 75.0° 2.000 Shell Arbor 0.8661 8 Flute Coolant 0.43 Max DOC 2.165 OAL

ANSI: TRGSM22I020-08-00

ISO: TRGSM22I020-08-00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2718081
Delivery date: 3-5 days
$1,157.33
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing
Insert/Tool Tool
Shipping State Illinois
Application Face Milling
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 8
Cut Dia Min 1.9500 49.53MM
Cut Dia Max 2.0000 50.80MM
Tool Material Aluminum/Steel
Overall Len 2.1650 54.99MM
Depth Of Cut Max 0.4300
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cutting & Machining Properties
Insert Style PC
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
