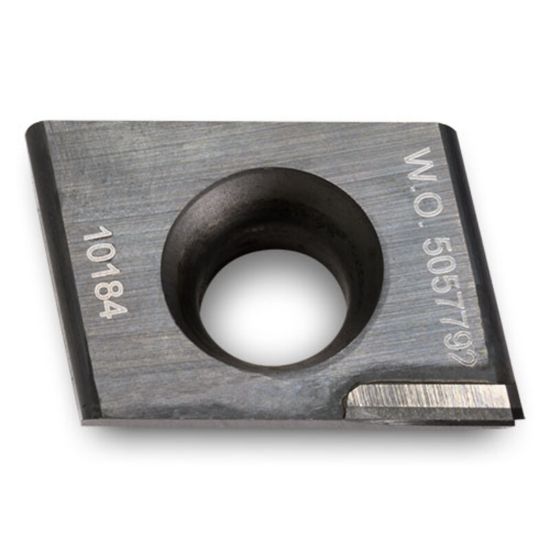

Picture of INGERSOLL TRGCA05MR CH Milling Insert On Edge 0.016 PCD Tedifeed

INGERSOLL TRGCA05MR CH Milling Insert On Edge 0.016 PCD Tedifeed

ANSI: TRGCA05MR CH

ISO: TRGCA05MR CH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2717532
Delivery date: 3-5 days
$90.00

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

unlike single crystalline diamond, produced synthetically by sintering together many (Poly) diamond particles, usually in the size of 2 to 30 microns of a meter, with a metal binder (usually Cobalt) at high temperature and high pressure. The rate is 90-95% diamond particles and the rest is Cobalt.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Milling Insert
Insert Application Roughing, Semi Finishing
Package Size 10
Coating PCD
Made In USA No
Shipping State Illinois
Insert Type Positive
Grade CH
Dimensional Specifications
Insert Size Ic A0
Corner Radius 0.0160 0.41MM
Depth Of Cut Max 0.1600
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Graphite
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Brazed End
Insert Style TR
Cutting Edge Mat PCD
