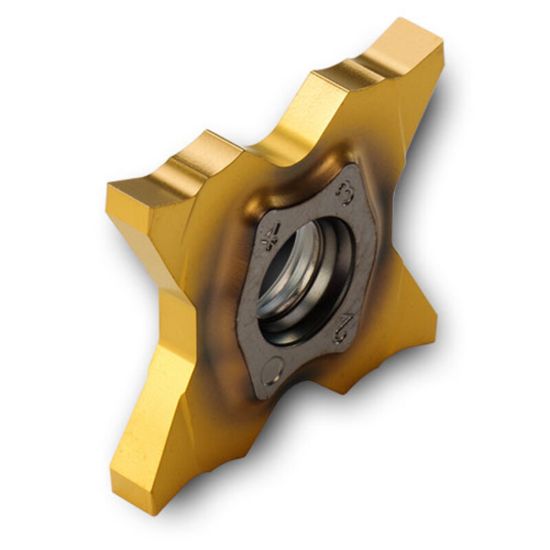

Picture of INGERSOLL TQS27-3.00-0.20 CT3000 Cut Off,Grooving Insert 0.118 Wide 0.008 Corner Radius

INGERSOLL TQS27-3.00-0.20 CT3000 Cut Off,Grooving Insert 0.118 Wide 0.008 Corner Radius

ANSI: TQS27-3.00-0.20 CT3000

ISO: TQS27-3.00-0.20 CT3000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6182615
Delivery date: 3-5 days
$37.99

Features And Benefits

27 mm IC - 4 Corner Insert for Grooving with Flat Cutting Edge for High Quality Surface Finish

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

4 Corner Insert for Parting & Grooving @ High Feed Rates

Grade and Coating Description

Cermet grade for turning, grooving & parting of alloy steels & stainless steels with high surface quality and long tool life due to high wear resistance and low coefficient of friction

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Illinois
Package Size 10
Insert Type Positive
Made In USA No
Insert/Tool Insert
Application Grooving & Parting Insert
Grade CT3000
Dimensional Specifications
Insert Size Ic 27
Cutting Width 0.1180 3.00MM
Corner Radius 0.0080 0.20MM
Depth Of Cut Max 0.2520
Cut Rating <48HRC Steel, Stainless Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Quadrilateral
Insert Style TQ
Cutting Edge Mat Cermet
