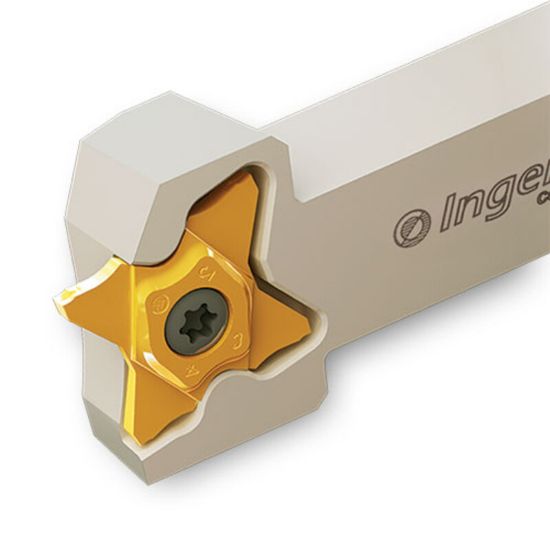

Picture of INGERSOLL TQHR19-27 Cut Off,Grooving Stick Tool Square 0.750 Steel

INGERSOLL TQHR19-27 Cut Off,Grooving Stick Tool Square 0.750 Steel

ANSI: TQHR19-27

ISO: TQHR19-27

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2802206
Delivery date: 3-5 days
$150.80

Features And Benefits

Gold Flex integral tool holders for parting and grooving Inch holders

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Application Ext.Threading, Ext.Grooving, Parting
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Overall Len 5.0000 127.00MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Over Hang 0.9050
Insert Size Ic 27
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Hand R/L Right
Inter/Extern External
Coolant Thru No
Insert Style TQ
