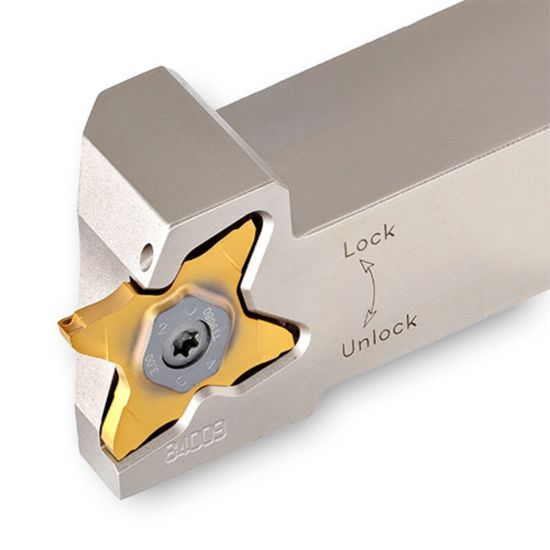

Picture of INGERSOLL TQHL25-34-TB Cut Off,Grooving Stick Tool Square 0.984 Steel

INGERSOLL TQHL25-34-TB Cut Off,Grooving Stick Tool Square 0.984 Steel

ANSI: TQHL25-34-TB

ISO: TQHL25-34-TB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6312675
Delivery date: 3-5 days
$244.40

Features And Benefits

Gold Flex integral tool holders for parting and grooving Metric holders High pressure coolant

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Threading, Ext.Grooving, Parting
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Shank/Pilot Dia 0.9843 25.00MM
Overall Len 5.3150 135.00MM
Machine Side Connection Size 0.9843 25.00MM
Insert Size Ic 34
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 1.1800
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Dog Bone
Coolant Thru Yes
Insert Style TQ
Hand R/L Left
