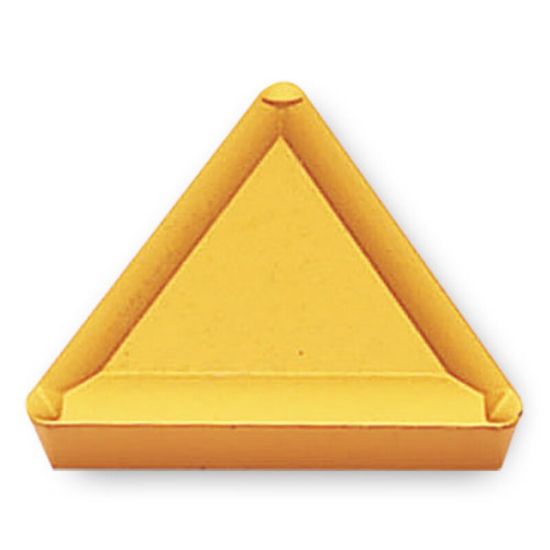

INGERSOLL TPMR322 PV3010 Turning Insert Triangle TiN 0.031 Corner Radius

ANSI: TPMR322 PV3010

ISO: TPMR160308 PV3010

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5516087
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

PVD coated Cermet grade with excellent wear resistance and low coefficient of friction for high speed finish turning of steels, stainless steels and cast irons with long tool life

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Coating TiN
Made In USA No
Shipping State Illinois
Insert Type Positive
Insert Application Semi Finishing, Roughing
Application Turning Insert
Grade PV3010
Package Size 10
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Corner Radius 0.0310 0.79MM
Insert Size Ic 16 "32"
Cutting & Machining Properties
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Cermet
