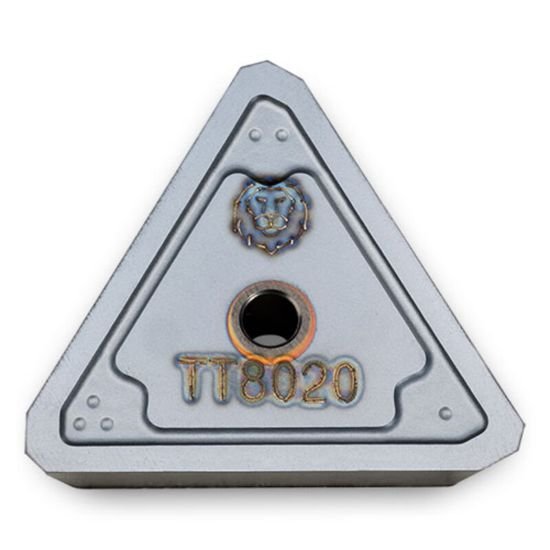

Picture of Ingersoll TPKN2204PDR HPN TT8020 Milling Insert Triangle 0.020 TiCN ISO

Ingersoll TPKN2204PDR HPN TT8020 Milling Insert Triangle 0.020 TiCN ISO

Part Number: ING6108969 ISO: TPKN2204PDR HPN TT8020 ANSI:TPKN2204PDR HPN TT8020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1007939
Vendor: Sussex Tool and Supply
$17.37
This product has a minimum quantity of 10
INGERSOLL 6108969 Triangle Insert Positive TiCN One of toughest PVD grade for turning, drilling grooving, parting-off and milling in medium and low speed machining of steels, stainless steels and heat resistant materials
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Stainless Steel, High Temp, <42HRC Steel
Coating TICN
Insert/Tool INSERT
Cut Type Roughing, Semi Finishing
Corner Radius 0.0200 0.51MM
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Grade TT8020
Insert Type Positive
Insert Size Ic 22
Insert Fits Triangle
Depth Of Cut Max 0.5900
