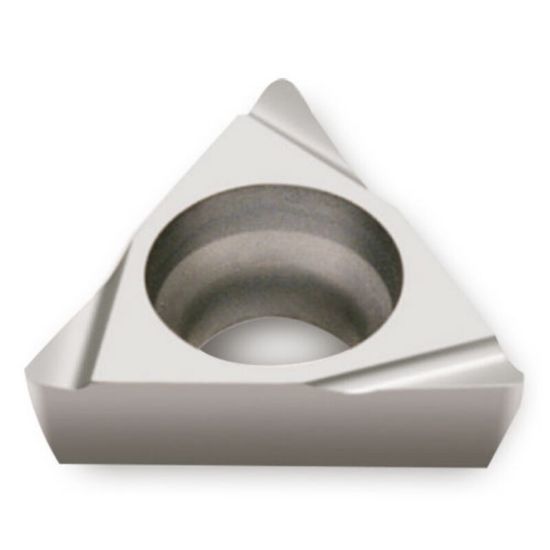

INGERSOLL TPGX730.5L CT3000 Turning Insert Triangle 0.008 Corner Radius

ANSI: TPGX730.5L CT3000

ISO: TPGX090202L CT3000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5701713
Delivery date: 3-5 days
$9.76

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Cermet grade for turning, grooving & parting of alloy steels & stainless steels with high surface quality and long tool life due to high wear resistance and low coefficient of friction

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Insert Application Finishing
Insert Type Positive
Package Size 10
Grade CT3000
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Dimensional Specifications
Corner Radius 0.0080 0.20MM
Cut Rating <48HRC Steel, Stainless Steel
Insert Size Ic 09 "73"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Cermet
Insert Style TP
