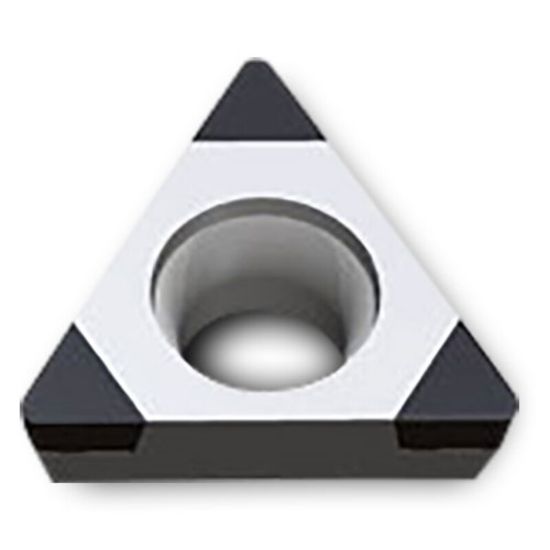

Picture of INGERSOLL TPGW732LS3 TB670 Turning Insert Triangle 0.031 Corner Radius

INGERSOLL TPGW732LS3 TB670 Turning Insert Triangle 0.031 Corner Radius

ANSI: TPGW732LS3 TB670

ISO: TPGW090208LS3 TB670

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5403095
Delivery date: 3-5 days
$107.33

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

CBN grade good for continuous and interrupted machining of hardened steels with excellent combination of wear resistance and toughness

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Turning Insert
Package Size 10
Insert Type Positive
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Grade TB670
Dimensional Specifications
Insert Size Ic 16 "33"
Cut Rating >50HRC Steel, Gray Iron
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Cutting Edge Mat CBN
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TP
