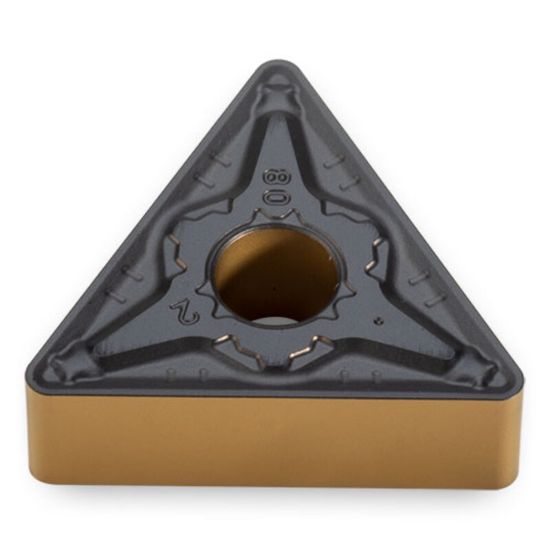

INGERSOLL TNMG333MGP TT8125B Turning Insert Triangle TiCN + Al2O3 + TiN 0.047 Corner Radius

ANSI: TNMG333MGP TT8125B

ISO: TNMG160412MGP TT8125B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6306325
Delivery date: 3-5 days
$6.96

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

CVD coated grade for general turning of steel machining with good combination of wear resistance and toughness

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Application Turning Insert
Package Size 10
Coating TiCN + Al2O3 + TiN
Grade TT8125B
Insert/Tool Insert
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 16 "33"
Corner Radius 0.0470 1.19MM
Cut Rating <48HRC Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Carbide
Insert Style TN
