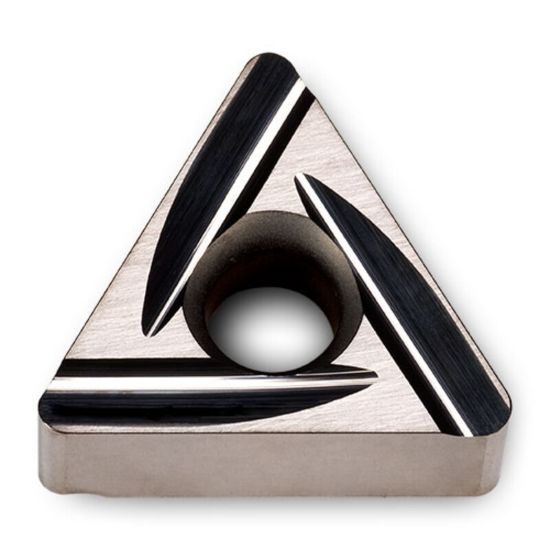

INGERSOLL TNGG2.532L CT3000 Turning Insert Triangle 0.031 Corner Radius

ANSI: TNGG2.532L CT3000

ISO: TNGG130408L CT3000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6121573
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Cermet grade for turning, grooving & parting of alloy steels & stainless steels with high surface quality and long tool life due to high wear resistance and low coefficient of friction

Products specifications
Attribute name Attribute value
General Product Information
Grade CT3000
Insert Application Roughing, Semi Finishing
Application Turning Insert
Package Size 10
Insert/Tool Insert
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Cut Rating <48HRC Steel, Stainless Steel
Insert Size Ic 13 "2.5"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Cermet
Insert Style TN
