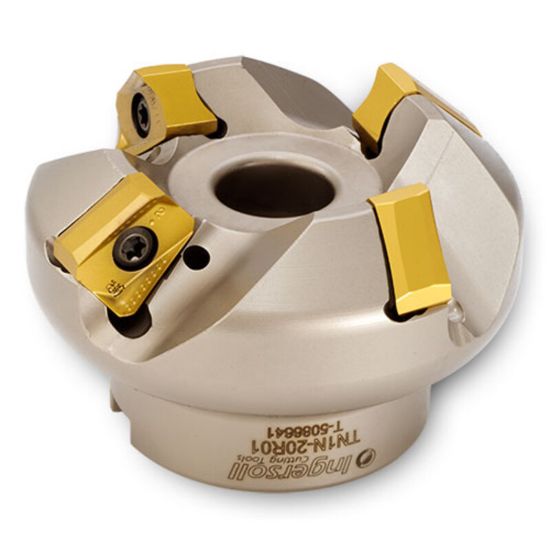

Picture of INGERSOLL TN1N-30R02 Milling Cutter 45.0° 3.000 Shell Arbor 1.0000 7 Flute 0.33 Max DOC 1.750 OAL

INGERSOLL TN1N-30R02 Milling Cutter 45.0° 3.000 Shell Arbor 1.0000 7 Flute 0.33 Max DOC 1.750 OAL

ANSI: TN1N-30R02

ISO: TN1N-30R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3025682
Delivery date: 3-5 days
$844.67

Details

FACE MILL 4 CUTTING EDGES, EXTREMELY THICK INSERT GIVES IT GREAT STRENGTH.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Application Semi Finishing, Finishing, Roughing
Insert Type Negative
Made In USA No
Application Face Milling
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.3300
Cut Dia Min 3.0000 76.20MM
Tool Material Steel
Insert Size Ic 16
Cut Dia Max 3.7500 95.25MM
Overall Len 1.7500 44.45MM
Cutter Dia 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 7
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Coolant Thru No
