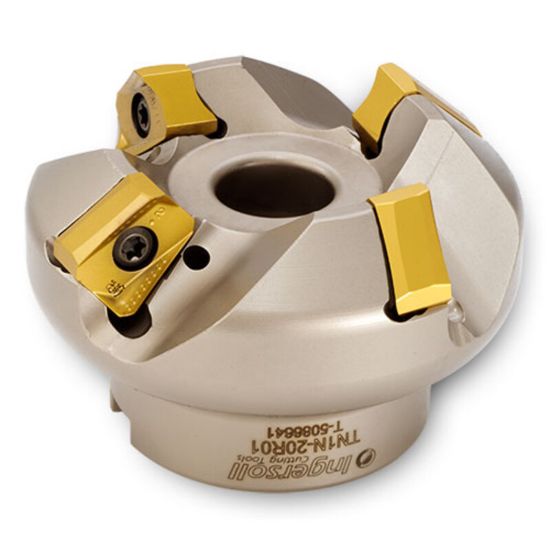

Picture of INGERSOLL TN1N-20R01 Milling Cutter 45.0° 2.000 Shell Arbor 0.7500 4 Flute 0.33 Max DOC 1.750 OAL

INGERSOLL TN1N-20R01 Milling Cutter 45.0° 2.000 Shell Arbor 0.7500 4 Flute 0.33 Max DOC 1.750 OAL

ANSI: TN1N-20R01

ISO: TN1N-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3025680
Delivery date: 3-5 days
$518.93

Details

FACE MILL 4 CUTTING EDGES, EXTREMELY THICK INSERT GIVES IT GREAT STRENGTH.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing, Finishing
Package Size 1
Insert/Tool Tool
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Face Milling
Dimensional Specifications
Flutes/Inserts 4
Depth Of Cut Max 0.3300
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.7500 44.45MM
Cut Dia Min 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 16
Cutter Dia 2.0000 50.80MM
Cut Dia Max 2.7500 69.85MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
