  • INGERSOLL TJ6N-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.59 Max DOC 1.750 OAL

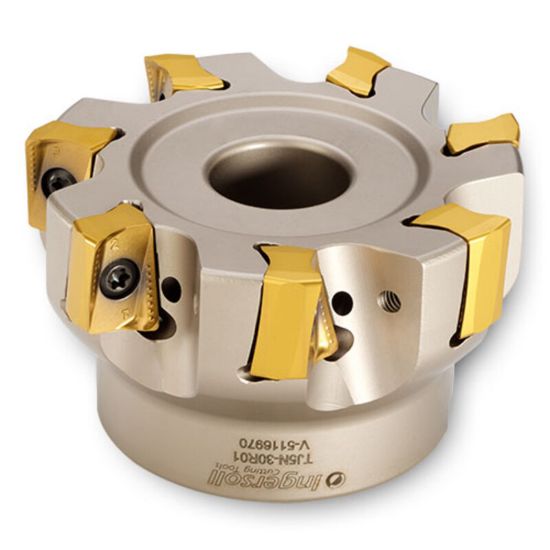

Picture of INGERSOLL TJ6N-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.59 Max DOC 1.750 OAL

INGERSOLL TJ6N-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.59 Max DOC 1.750 OAL

ANSI: TJ6N-30R01

ISO: TJ6N-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3025671
Delivery date: 3-5 days
$793.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Dimensional Specifications
Insert Size Ic 16
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 3.0000 76.20MM
Tool Material Steel
Flutes/Inserts 5
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.5900
Overall Len 1.7500 44.45MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 0.50°
Coolant Thru Yes
Insert Style AN
