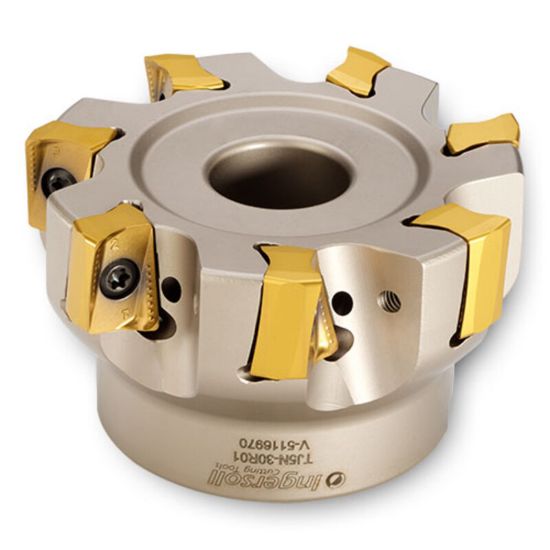

Picture of INGERSOLL TJ5N-80R01 Milling Cutter 90.0° 8.000 Shell Arbor 2.5000 14 Flute 0.59 Max DOC 2.480 OAL

INGERSOLL TJ5N-80R01 Milling Cutter 90.0° 8.000 Shell Arbor 2.5000 14 Flute 0.59 Max DOC 2.480 OAL

ANSI: TJ5N-80R01

ISO: TJ5N-80R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3025679
Delivery date: 3-5 days
$1,941.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Insert Type Negative
Shipping State Illinois
Made In USA No
Application Face Milling, Side Milling
Package Size 1
Dimensional Specifications
Machine Side Connection Size 2.5000 63.50MM
Insert Size Ic 16
Cutter Dia 8.0000 203.20MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Flutes/Inserts 14
Depth Of Cut Max 0.5900
Cut Dia Min 8.0000 203.20MM
Overall Len 2.4800 62.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru No
Insert Style AN
