  • INGERSOLL TJ5N-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 7 Flute Coolant 0.59 Max DOC 1.750 OAL

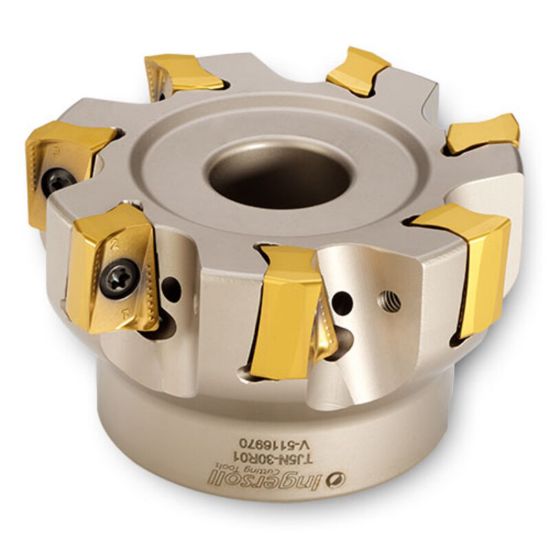

Picture of INGERSOLL TJ5N-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 7 Flute Coolant 0.59 Max DOC 1.750 OAL

INGERSOLL TJ5N-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 7 Flute Coolant 0.59 Max DOC 1.750 OAL

ANSI: TJ5N-30R01

ISO: TJ5N-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3025672
Delivery date: 3-5 days
$844.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Insert Size Ic 16
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 7
Depth Of Cut Max 0.5900
Cutter Dia 3.0000 76.20MM
Overall Len 1.7500 44.45MM
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Coolant Thru Yes
Max Ramp Angle 0.50°
