  • INGERSOLL TJ1D-30R01 Milling Cutter Backdraft 3.000 Shell Arbor 1.0000 9 Flute Coolant 0.24 Max DOC 1.750 OAL

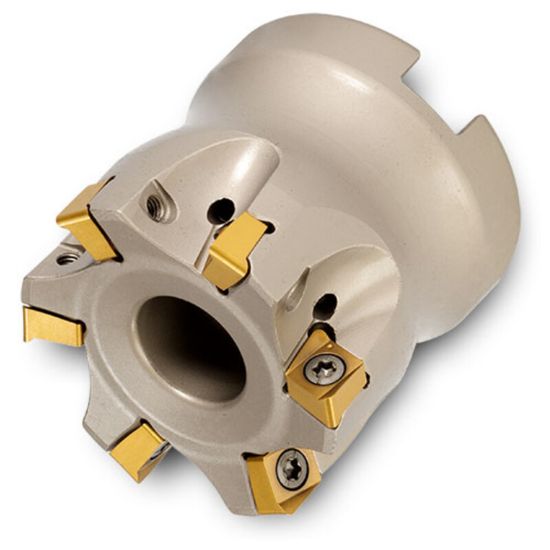

Picture of INGERSOLL TJ1D-30R01 Milling Cutter Backdraft 3.000 Shell Arbor 1.0000 9 Flute Coolant 0.24 Max DOC 1.750 OAL

INGERSOLL TJ1D-30R01 Milling Cutter Backdraft 3.000 Shell Arbor 1.0000 9 Flute Coolant 0.24 Max DOC 1.750 OAL

ANSI: TJ1D-30R01

ISO: TJ1D-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2923600
Delivery date: 3-5 days
$688.80

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Copy Milling, Feed Milling, Face Milling, Profile Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 5
Depth Of Cut Max 0.2400
Tool Material Steel
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 9
Cutter Dia 3.0000 76.20MM
Overall Len 1.7500 44.45MM
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Max Ramp Angle 1.30°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style EN
Coolant Thru Yes
