  • INGERSOLL TJ1C-20R01 Milling Cutter Backdraft 2.000 Shell Arbor 0.7500 9 Flute Coolant 0.18 Max DOC 1.570 OAL

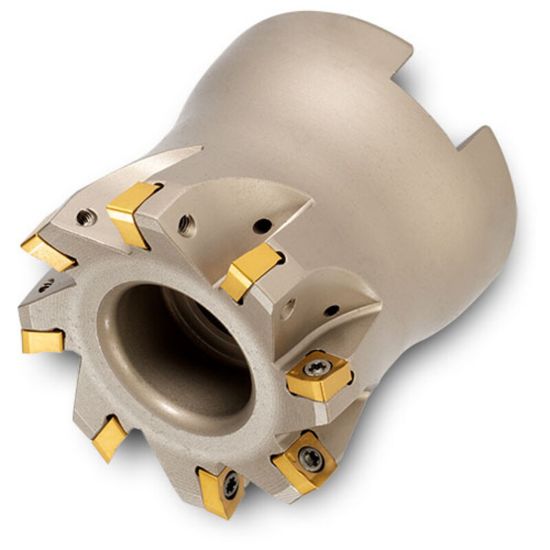

Picture of INGERSOLL TJ1C-20R01 Milling Cutter Backdraft 2.000 Shell Arbor 0.7500 9 Flute Coolant 0.18 Max DOC 1.570 OAL

INGERSOLL TJ1C-20R01 Milling Cutter Backdraft 2.000 Shell Arbor 0.7500 9 Flute Coolant 0.18 Max DOC 1.570 OAL

ANSI: TJ1C-20R01

ISO: TJ1C-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910936
Delivery date: 3-5 days
$667.33

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Face Milling, Profile Milling, Ramp Milling, Slot Milling
Insert/Tool Tool
Package Size 1
Insert Application General Purpose
Shipping State Illinois
Insert Type Negative
Made In USA No
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 5
Tool Material Steel
Overall Len 1.5700 39.88MM
Depth Of Cut Max 0.1800
Cut Dia Min 2.0000 50.80MM
Flutes/Inserts 9
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Max Ramp Angle 0.90°
Insert Style EN
