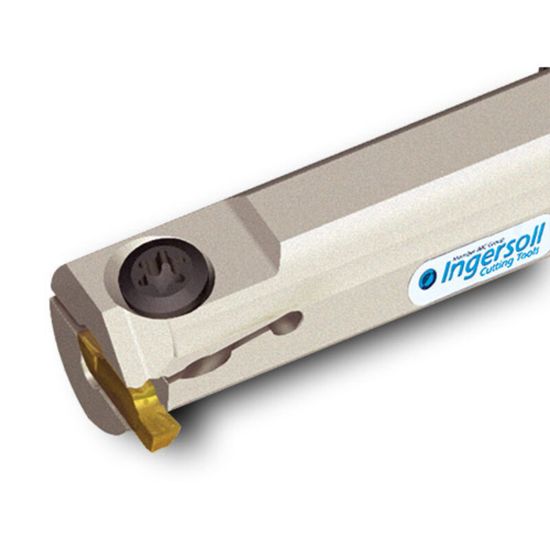

Picture of INGERSOLL TGSIR9.5-13-2 Grooving Boring Bar Boring Bar 0.375 Steel

INGERSOLL TGSIR9.5-13-2 Grooving Boring Bar Boring Bar 0.375 Steel

ANSI: TGSIR9.5-13-2

ISO: TGSIR9.5-13-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6108223
Delivery date: 3-5 days
$188.93

Features And Benefits

T-Clamp tool holders shallow internal grooving and turning on small diameters

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Illinois
Package Size 1
Application Int.Groove Turning, Int.Grooving
Insert Type Positive
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 2, 3
Tool Material Steel
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3750 9.53MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 5.0000 127.00MM
Min Bore 0.4920
Depth Of Cut Max 0.0980
Cutting & Machining Properties
Insert Style TD
Insert Shape/Cutter Pocket Shape Dog Bone
Inter/Extern Internal
Hand R/L Right
