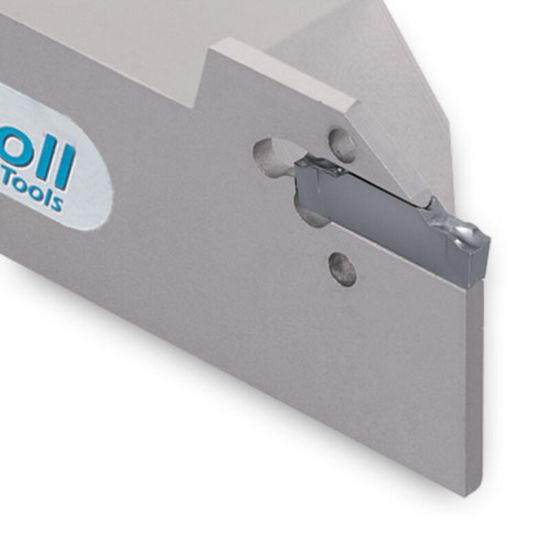

Picture of INGERSOLL TGER19-4 Gooving,Groove Threading Stick Tool Square 0.750 Steel

INGERSOLL TGER19-4 Gooving,Groove Threading Stick Tool Square 0.750 Steel

ANSI: TGER19-4

ISO: TGER19-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2350019
Delivery date: 3-5 days
$149.93

Features And Benefits

Holders for parting and deep grooving

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Grooving, Parting, Ext.Threading
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Insert Size Ic 4
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Depth Of Cut Max 2.1700
Machine Side Connection Size 0.7500 19.05MM
Overall Len 4.5000 114.30MM
Tool Over Hang 0.6870
Cutting & Machining Properties
Insert Style TD
Inter/Extern External
Extractor EDG-33B
Hand R/L Right
Insert Shape/Cutter Pocket Shape Dog Bone
