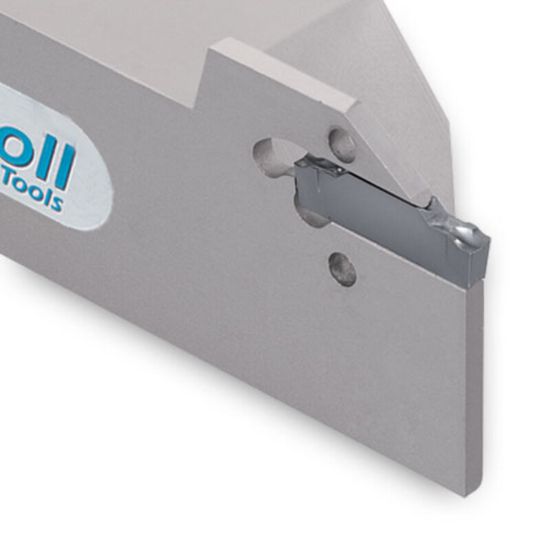

Picture of INGERSOLL TGEL19-2 Gooving,Groove Threading Stick Tool Square 0.750 Steel

INGERSOLL TGEL19-2 Gooving,Groove Threading Stick Tool Square 0.750 Steel

ANSI: TGEL19-2

ISO: TGEL19-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2330022
Delivery date: 3-5 days
$149.93

Features And Benefits

Holders for parting and deep grooving

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Illinois
Application Ext.Threading, Ext.Grooving, Parting
Package Size 1
Insert Type Positive
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 2
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 4.5000 114.30MM
Depth Of Cut Max 1.3800
Tool Over Hang 0.7150
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Inter/Extern External
Extractor EDG-33B
Insert Style TD
Insert Shape/Cutter Pocket Shape Dog Bone
Hand R/L Right
