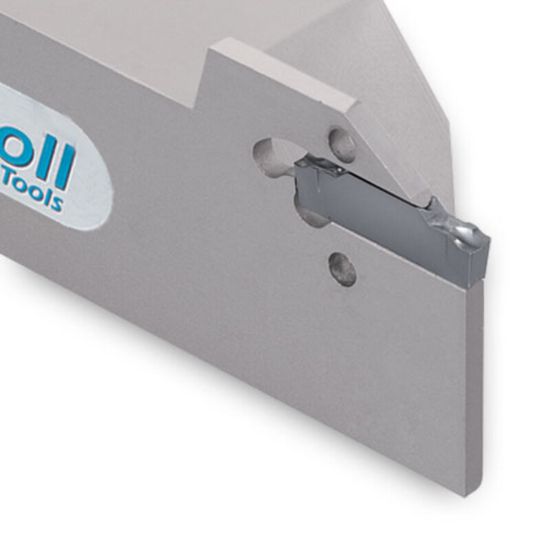

Picture of INGERSOLL TGEL12.7-3 Gooving,Groove Threading Stick Tool Square 0.500 Steel

INGERSOLL TGEL12.7-3 Gooving,Groove Threading Stick Tool Square 0.500 Steel

ANSI: TGEL12.7-3

ISO: TGEL12.7-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2330024
Delivery date: 3-5 days
$126.53

Features And Benefits

Holders for parting and deep grooving

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Tool
Application Ext.Grooving, Parting, Ext.Threading
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Overall Len 4.5000 114.30MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 0.4530
Insert Size Ic 3
Depth Of Cut Max 1.3800
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Insert Style TD
Hand R/L Left
Inter/Extern External
Extractor EDG-33B
Insert Shape/Cutter Pocket Shape Dog Bone
