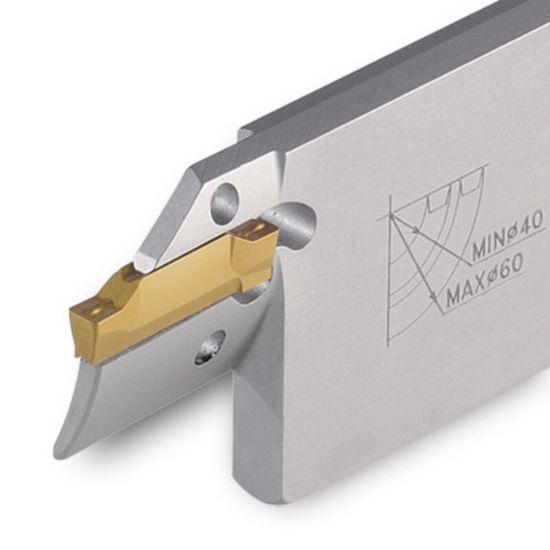

Picture of INGERSOLL TGBFL32T35-85-140-5 Cut Off,Grooving Blade Blade 1.260 Steel

INGERSOLL TGBFL32T35-85-140-5 Cut Off,Grooving Blade Blade 1.260 Steel

ANSI: TGBFL32T35-85-140-5

ISO: TGBFL32T35-85-140-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6218998
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Blades for deep face grooving

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Insert/Tool Tool
Application Ext.Grooving, Parting
Insert Type Positive
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 1.3780
Machine Side Connection Size 1.2598 32.00MM
Overall Len 5.9000 149.86MM
Face Groove Min Dia 3.3500
Insert Size Ic 5
Face Groove Max Dia 5.5100
Tool Material Steel
Machine Side Connection Type Blade
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Extractor EDG-33B
Insert Style TD
Hand R/L Left
