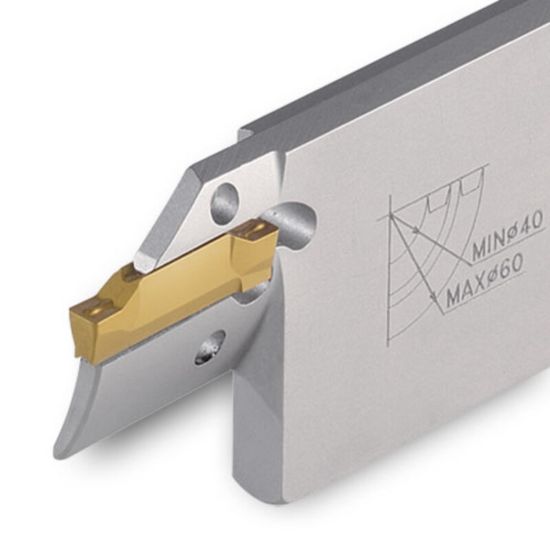

Picture of INGERSOLL TGBFL32T32-60-95-5 Cut Off,Grooving Blade Blade 1.260 Steel

INGERSOLL TGBFL32T32-60-95-5 Cut Off,Grooving Blade Blade 1.260 Steel

ANSI: TGBFL32T32-60-95-5

ISO: TGBFL32T32-60-95-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2350039
Delivery date: 3-5 days
$215.80

Features And Benefits

Blades for deep face grooving

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Grooving, Parting
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Package Size 1
Insert Type Positive
Dimensional Specifications
Insert Size Ic 5
Tool Material Steel
Depth Of Cut Max 1.2600
Machine Side Connection Type Blade
Machine Side Connection Size 1.2598 32.00MM
Face Groove Min Dia 2.3600
Face Groove Max Dia 3.7400
Overall Len 5.9000 149.86MM
Cutting & Machining Properties
Insert Style TD
Hand R/L Left
Insert Shape/Cutter Pocket Shape Dog Bone
Extractor EDG-33B
