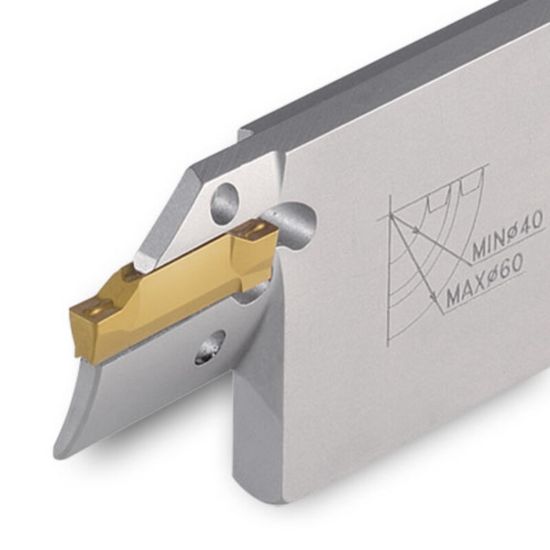

Picture of INGERSOLL TGBFL32T30-120-200-4 Cut Off,Grooving Blade Blade 1.260 Steel

INGERSOLL TGBFL32T30-120-200-4 Cut Off,Grooving Blade Blade 1.260 Steel

ANSI: TGBFL32T30-120-200-4

ISO: TGBFL32T30-120-200-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6218996
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Blades for deep face grooving

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Positive
Insert/Tool Tool
Application Ext.Grooving, Parting
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Face Groove Min Dia 4.7200
Overall Len 5.9000 149.86MM
Face Groove Max Dia 7.8700
Insert Size Ic 4
Tool Material Steel
Depth Of Cut Max 1.1810
Machine Side Connection Type Blade
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Extractor EDG-33B
Insert Style TD
Hand R/L Left
Insert Shape/Cutter Pocket Shape Dog Bone
