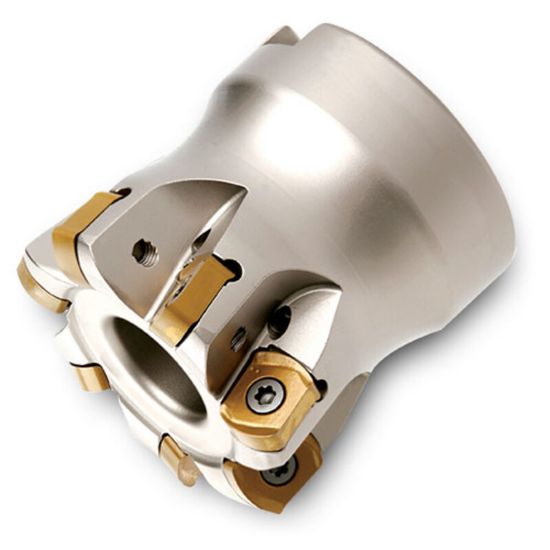

Picture of INGERSOLL TG3G063R00 Milling Cutter 2.480 Shell Arbor 0.8661 6 Flute Coolant 0.06 Max DOC 1.968 OAL

INGERSOLL TG3G063R00 Milling Cutter 2.480 Shell Arbor 0.8661 6 Flute Coolant 0.06 Max DOC 1.968 OAL

ANSI: TG3G063R00

ISO: TG3G063R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3113365
Delivery date: 3-5 days
$715.87

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Feed Milling, Ramp Milling, Copy Milling, Face Milling, Slot Milling
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 2.4800 62.99MM
Overall Len 1.9685 50.00MM
Flutes/Inserts 6
Cutter Dia 2.4800 62.99MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cut Dia Min 2.4800 62.99MM
Depth Of Cut Max 0.0600
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 0.80°
Insert Shape/Cutter Pocket Shape Other
