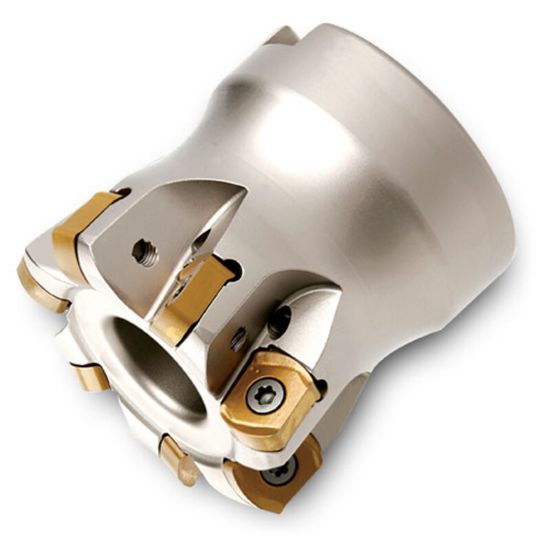

Picture of INGERSOLL TG2G050R00 Milling Cutter 1.967 Shell Arbor 0.8661 6 Flute Coolant 0.06 Max DOC 1.968 OAL

INGERSOLL TG2G050R00 Milling Cutter 1.967 Shell Arbor 0.8661 6 Flute Coolant 0.06 Max DOC 1.968 OAL

ANSI: TG2G050R00

ISO: TG2G050R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3112716
Delivery date: 3-5 days
$605.73

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Copy Milling, Feed Milling, Face Milling, Ramp Milling
Insert Type Negative
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cut Dia Max 1.9690 50.01MM
Cut Dia Min 1.9690 50.01MM
Overall Len 1.9685 50.00MM
Flutes/Inserts 6
Depth Of Cut Max 0.0600
Tool Material Steel
Cutting & Machining Properties
Max Ramp Angle 1.00°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
