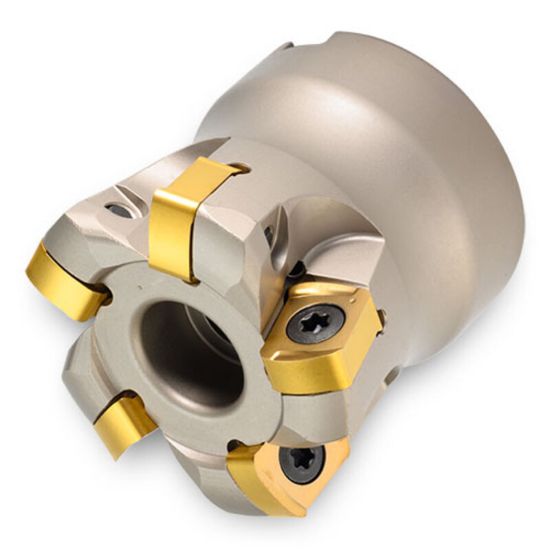

Picture of INGERSOLL TG1J-25R01  Milling Feed Mill Milling Cutter PowerFeed+ Insert

INGERSOLL TG1J-25R01  Milling Feed Mill Milling Cutter PowerFeed+ Insert

ANSI: TG1J-25R01

ISO: TG1J-25R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2926178
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Package Size 1
Insert Type Positive
Application Face Milling, Slot Milling, Ramp Milling, Copy Milling, Feed Milling
Insert/Tool Insert
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.9690 50.01MM
Insert Size Ic 11
Depth Of Cut Max 0.0780
Cut Dia Min 1.8840 47.85MM
Flutes/Inserts 6
Tool Material Steel
Cutting & Machining Properties
Max Ramp Angle 0.45°
Insert Style UN
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Fasteners & Connectors
Insert Screw SM50-127-10
