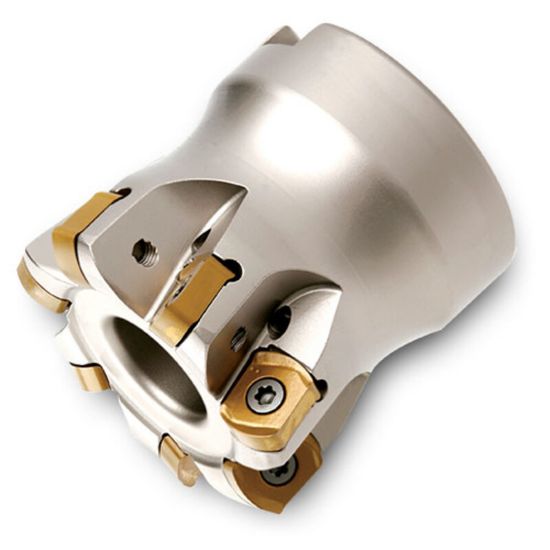

Picture of INGERSOLL TG1G-20R01 Milling Cutter 2.000 Shell Arbor 0.7500 7 Flute Coolant 0.06 Max DOC 1.970 OAL

INGERSOLL TG1G-20R01 Milling Cutter 2.000 Shell Arbor 0.7500 7 Flute Coolant 0.06 Max DOC 1.970 OAL

ANSI: TG1G-20R01

ISO: TG1G-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2906727
Delivery date: 3-5 days
$627.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ramp Milling, Face Milling, Slot Milling, Copy Milling, Feed Milling
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 2.0000 50.80MM
Depth Of Cut Max 0.0600
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 2.0000 50.80MM
Cut Dia Min 1.5930 40.46MM
Overall Len 1.9700 50.04MM
Flutes/Inserts 7
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Max Ramp Angle 1.00°
