  • INGERSOLL TG1F052R00 Milling Cutter 2.047 Shell Arbor 0.8661 7 Flute Coolant 0.0394 Max DOC 1.968 OAL

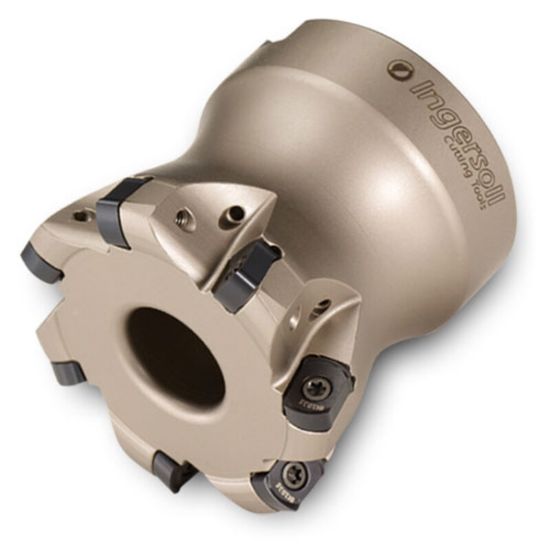

Picture of INGERSOLL TG1F052R00 Milling Cutter 2.047 Shell Arbor 0.8661 7 Flute Coolant 0.0394 Max DOC 1.968 OAL

INGERSOLL TG1F052R00 Milling Cutter 2.047 Shell Arbor 0.8661 7 Flute Coolant 0.0394 Max DOC 1.968 OAL

ANSI: TG1F052R00

ISO: TG1F052R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3029812
Delivery date: 3-5 days
$655.20
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Ramp Milling, Slot Milling, Face Milling
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Made In USA No
Dimensional Specifications
Cut Dia Max 2.0470 51.99MM
Overall Len 1.9685 50.00MM
Cut Dia Min 1.7320 43.99MM
Tool Material Steel
Flutes/Inserts 7
Depth Of Cut Max 0.0394
Cutter Dia 2.0470 51.99MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Max Ramp Angle 0.50°
