  • INGERSOLL TEBL220-20-06-L200 Milling Cutter 0.787 Cylindrical 0.7874 2 Flute Coolant 0.0394 Max DOC 7.874 OAL

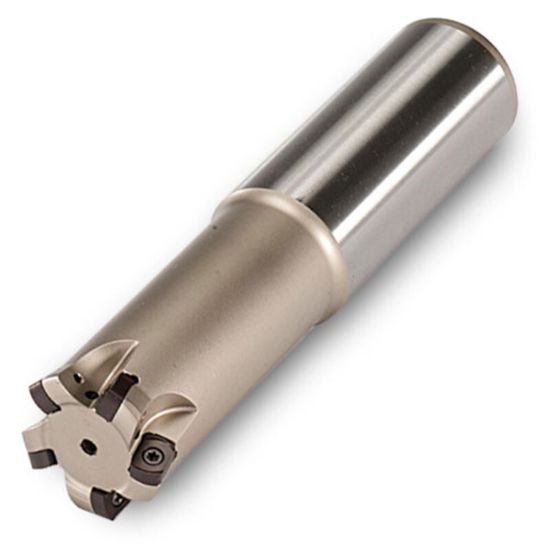

Picture of INGERSOLL TEBL220-20-06-L200 Milling Cutter 0.787 Cylindrical 0.7874 2 Flute Coolant 0.0394 Max DOC 7.874 OAL

INGERSOLL TEBL220-20-06-L200 Milling Cutter 0.787 Cylindrical 0.7874 2 Flute Coolant 0.0394 Max DOC 7.874 OAL

ANSI: TEBL220-20-06-L200

ISO: TEBL220-20-06-L200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3112531
Delivery date: 3-5 days
$344.40
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application General Purpose
Shipping State Illinois
Insert/Tool Tool
Insert Type Negative
Made In USA No
Dimensional Specifications
Cutter Dia 0.7870 19.99MM
Cut Dia Max 0.7870 19.99MM
Tool Material Steel
Depth Of Cut Max 0.0394
Machine Side Connection Type Cylindrical
Cut Dia Min 0.4880 12.40MM
Machine Side Connection Size 0.7874 20.00MM
Overall Len 7.8740 200.00MM
Flutes/Inserts 2
Shank/Pilot Dia 0.7874 20.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Max Ramp Angle 1.50°
