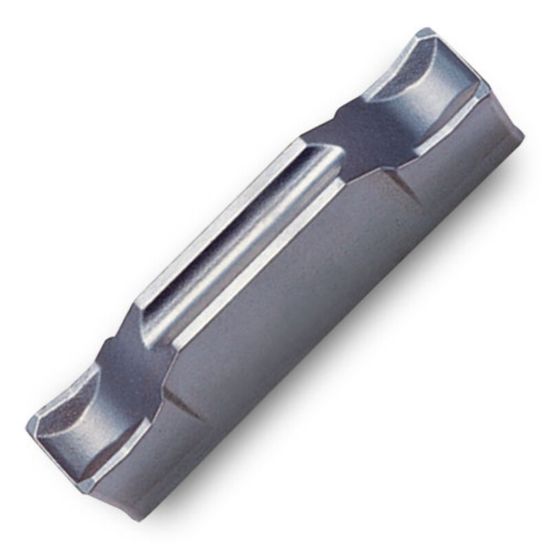

INGERSOLL TDC4 CT3000 Face Grooving,Grooving,Groove Turning Insert 0.157 Wide 0.012 Corner Radius

ANSI: TDC4 CT3000

ISO: TDC4 CT3000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5740094
Delivery date: 3-5 days
$22.69

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Cermet grade for turning, grooving & parting of alloy steels & stainless steels with high surface quality and long tool life due to high wear resistance and low coefficient of friction

Products specifications
Attribute name Attribute value
General Product Information
Grade CT3000
Made In USA No
Insert/Tool Insert
Application Grooving & Parting Insert
Package Size 10
Insert Type Positive
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Cut Rating <48HRC Steel, Stainless Steel
Depth Of Cut Max 0.7480
Cutting Width 0.1570 3.99MM
Insert Size Ic 4
Corner Radius 0.0120 0.30MM
Cutting & Machining Properties
Insert Style TD
Insert Shape/Cutter Pocket Shape Other
Cutting Edge Mat Cermet
