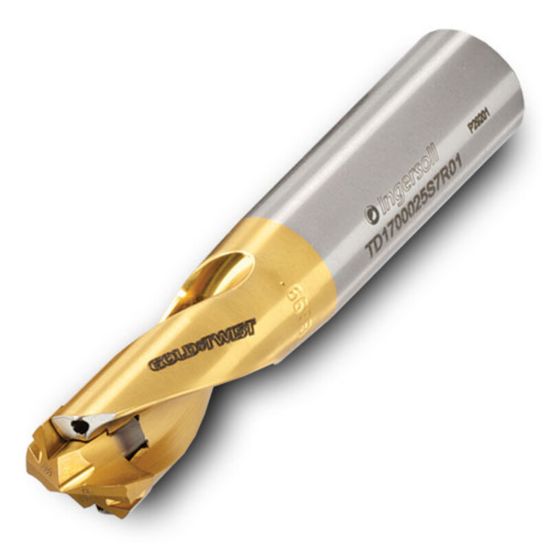

INGERSOLL TD2500037S9R01 0.9843 (25.000 mm)-1.0197 (25.900 mm) GoldTwist Body

ISO: TD2500037S9R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3204613
Delivery date: 3-5 days
$453.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Dia Deep 1.5XD
Included Angle 140°
Cut Dia Max 1.0200 25.91MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 2
Machine Side Connection Type Boring Bar,Weldon
Tool Material Carbide
Cut Dia Min 0.9843 25.00MM - 63/64
Machine Side Connection Size 1.2500 31.75MM
Flute Length 1.5000 38.10MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
