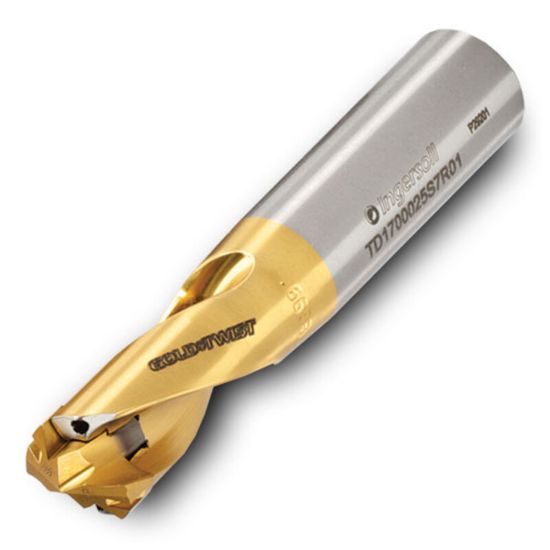

INGERSOLL TD2200033S1R01 0.8661 (22.000 mm)-0.9016 (22.900 mm) GoldTwist Body

ISO: TD2200033S1R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3212789
Delivery date: 3-5 days
$366.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Package Size 1
Shipping State Illinois
Dimensional Specifications
Dia Deep 1.5XD
Included Angle 140°
Cut Dia Min 0.8661 22.00MM
Flutes/Inserts 2
Flute Length 1.3000 33.02MM
Machine Side Connection Type Boring Bar,Weldon
Tool Material Carbide
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Max 0.9020 22.91MM
Cutter Dia 0.8661 22.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
