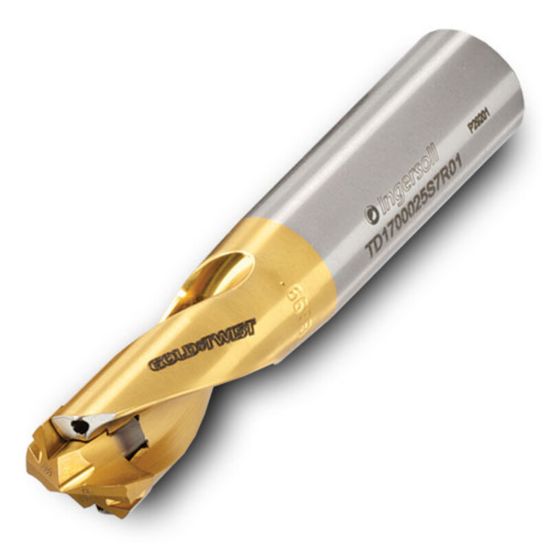

INGERSOLL TD1500022S7R01 0.5906 (15.000 mm)-0.6260 (15.900 mm) GoldTwist Body

ISO: TD1500022S7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3212714
Delivery date: 3-5 days
$232.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Made In USA No
Package Size 1
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 0.6260 15.90MM
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 2
Dia Deep 1.5XD
Included Angle 140°
Flute Length 0.9100 23.11MM
Tool Material Carbide
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 0.5906 15.00MM
Cut Dia Min 0.5906 15.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
