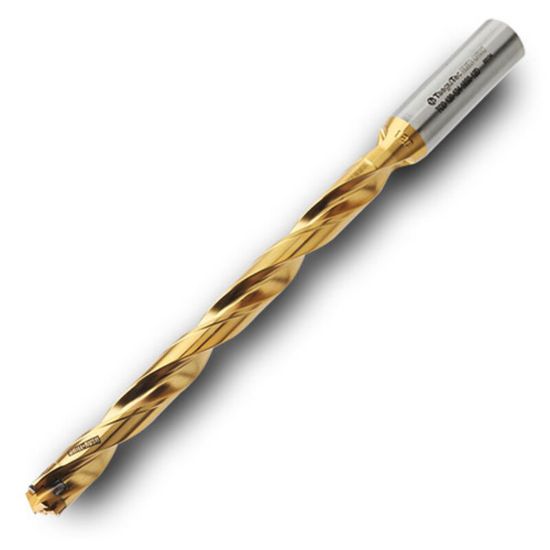

INGERSOLL TD1300156S6R01 0.5118 (13.000 mm)-0.5276 (13.400 mm) GoldTwist Body

ISO: TD1300156S6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6127792
Delivery date: 3-5 days
$435.87

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 12.0XD
Flute Length 6.1400 155.96MM
Flutes/Inserts 2
Included Angle 140°
Cut Dia Max 0.5280 13.41MM
Tool Material Carbide
Cutter Dia 0.5118 13.00MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cut Dia Min 0.5118 13.00MM
Machine Side Connection Size 0.6250 15.88MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
