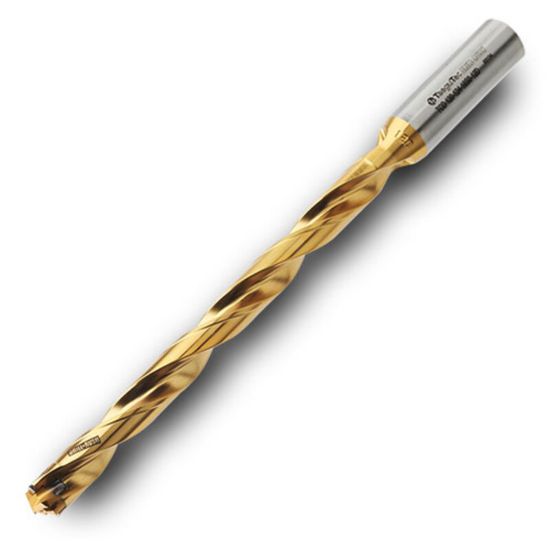

INGERSOLL TD1050126S6R01 0.4133 (10.498 mm)-0.4291 (10.899 mm) GoldTwist Body

ISO: TD1050126S6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6319429
Delivery date: 3-5 days
$406.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Package Size 1
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Flute Length 5.0400 128.02MM
Included Angle 140°
Cut Dia Max 0.4290 10.90MM
Tool Material Carbide
Flutes/Inserts 2
Cut Dia Min 0.4133 10.50MM - Z
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutter Dia 0.4133 10.50MM - Z
Machine Side Connection Size 0.6250 15.88MM
Dia Deep 12.0XD
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
