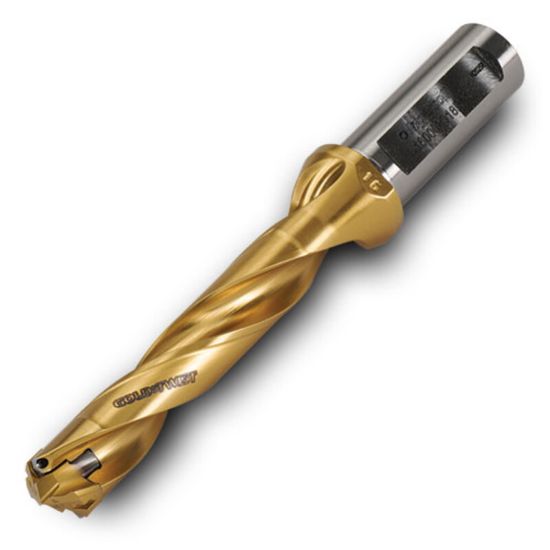

INGERSOLL TD0750060JCR00 0.2953 (7.5 mm)-0.3110 (7.9 mm) GoldTwist Body

ISO: TD0750060JCR00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6102130
Delivery date: 3-5 days
$321.07

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Dia 0.2953 7.50MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Cut Dia Max 0.3110 7.90MM
Cut Dia Min 0.2953 7.50MM - M
Dia Deep 8.0XD
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 2
Flute Length 2.3620 59.99MM
Included Angle 140°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
