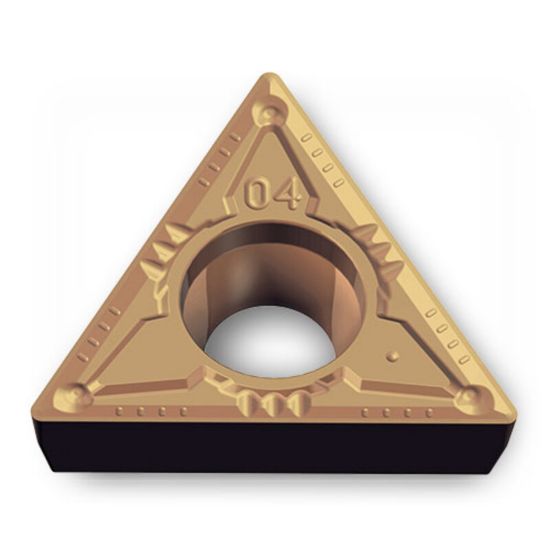

INGERSOLL TCMT731FM CT3000 Turning Insert Triangle 0.016 Corner Radius

ANSI: TCMT731FM CT3000

ISO: TCMT090204FM CT3000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6155747
Delivery date: 3-5 days
$5.71

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Cermet grade for turning, grooving & parting of alloy steels & stainless steels with high surface quality and long tool life due to high wear resistance and low coefficient of friction

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Made In USA No
Grade CT3000
Shipping State Illinois
Insert Application Finishing
Insert Type Positive
Insert/Tool Insert
Package Size 10
Dimensional Specifications
Corner Radius 0.0160 0.41MM
Cut Rating <48HRC Steel, Stainless Steel
Insert Size Ic 09 "73"
Cutting & Machining Properties
Insert Style TC
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Cermet
